Build the Review Screens (Block 3f)

Everything so far runs invisibly; the only view is the traces of case instances. This block builds the part of your solution that humans will see and use: the Coded Action App's two screens, the Eligibility Review and the Claim Review, that the Maestro Case raises its tasks against in Action Center.

Screens come last for a reason: by now your own runs have populated real records, so the screens are built against payloads your own Agents actually produced. The agent captures fixtures from your Data Fabric records.

Decided for us

• What exactly the reviewer must see. PDD.md §5.7 lists it: the stages, every check including the passes, the settlement line by line, the three documents, two outcomes with a written reason.
• The layout. 3f-validation/layout.md fixes the regions of both screens, so every seat's screen is reviewable against one expectation.
• The look. 3f-validation/brand.md carries the palette, type and CSS tokens.
• The rest is yours, and you have to state it to your agent explicitly. Asked for "a screen that shows a claim," an agent produces a correct form generated from a schema. Taste is a requirement you have to state: what is visible before scrolling, what opens on demand, how the width is used. Everything else in a spec is checkable; this one it will silently skip.

The prompt

Prompt — block 3f · Action App

# Build the Coded Action App

`PDD.md` §5.7 says what each of the two reviewers must be able to see. Build the **Coded Action App** the Maestro case raises its `action` tasks against in Action Center.

Use the **`uipath-coded-apps`** skill. The app already exists — created at `3d` **beside** the solution with its contract and an empty page, and deployed into your seat folder. This block replaces the empty page with the two screens and redeploys **the app alone** — `uip codedapp pack` → `publish -t Action` → `deploy --folder-key <seat folder> --client-id <the shared registration>` — the solution and the case untouched.

The client id for the app is what lets the screen read the Data Fabric record (`CONFIG.md`, *The Coded Action App signs in through a shared registration*); **`contracts/review-task.md` is the shape you implement**, the case already binds it, so don't change it. It reads the Data Fabric entity and returns a decision.

**Requirements:**
- What each reviewer must see, may change and decides — `PDD.md` §5.7 (the stages the claim is at, the checks with passes included, the settlement line by line, the three documents, two outcomes with a written reason)
- What the app hands back — `contracts/review-task.md`.
- Where each of those sits on the page — `3f-validation/layout.md`. Fixes the regions of both screens based on business user's requirements — header, where the claim is, the decision, the at-a-glance cards, the checks, the documents — with a wireframe and what each region must carry. **The layout is decided; the styling is yours.**
- How it looks — `3f-validation/brand.md`. Carries the palette, type and CSS tokens — use these as official company style.

**Build it against payloads your own Agents actually produced**, not against payloads you imagined. Use claims from previous run to read what landed on the Data Fabric record, and capture each open-gate fixture while its task is still open — that record is what the reviewer will see.

**Pause for a human before the first publish.** Serve the app locally on fixtures captured from your own records — development-only, never shipped — and ask your reviewer to open `http://127.0.0.1:<port>` with `?gate=eligibility`, `?gate=eligibility&state=decided`, `?gate=review`, `?gate=review&state=decided` — one screen state each, the decided review carrying a real settlement override. Apply what they find, then publish once.

**After the deploy, prove the write-back once per gateway without a browser**: raise a fresh claim, complete its task with `uip tasks complete`, read the record back — a task decided before a fix proves nothing (`contracts/review-task.md`). Validating the deployed screens inside Action Center is the reviewer's own optional check.

Two gates handled by single app.
- First: **Eligibility Check** gate has five checks and no assessments.
- Second: **Claim Review** will have all payloads.

**Done when**
- your reviewer has approved all four localhost states.
- the app is republished alone and upgraded in place.
- a fresh task per gateway, completed from the command line, lands its decision on the Data Fabric record and moves the case on.
- a completed task still carries all its data when read back.

Steps:

• Read PDD.md §5.7, contracts/review-task.md, 3f-validation/layout.md and brand.md; load the uipath-coded-apps skill
• Capture fixtures from the seat's own live records (the decided states verbatim, the waiting states rewound to the columns that exist at that gate), plus the real PDFs for the document overlay; capture each open-gate fixture while its task is still open
• Derive the status→stage map from caseplan.json (a stage list typed into the app is forbidden; generate it)
• Build the two gate screens into the app registered at 3d: same name, same schema, contract untouched
• Serve locally inside an Action Center stand-in and pause: the reviewer walks the four states
• Apply the feedback; prove the shipped bundle carries no dev fixtures; pack → publish -t Action → deploy the app alone
• Prove write-back per gateway: fresh claim, task completed from the CLI, record read back
• Update PROGRESS.md

The localhost review (by you)

Coded Apps can be served locally and previewed before publishing to Orchestrator. Every screen fix after a deploy costs a pack → publish → deploy cycle; the same fix on a localhost preview costs a refresh. So the coding agent is instructed to pause before its first publish, with the app served locally on your captured fixtures, while you review four states:

Open	What to check

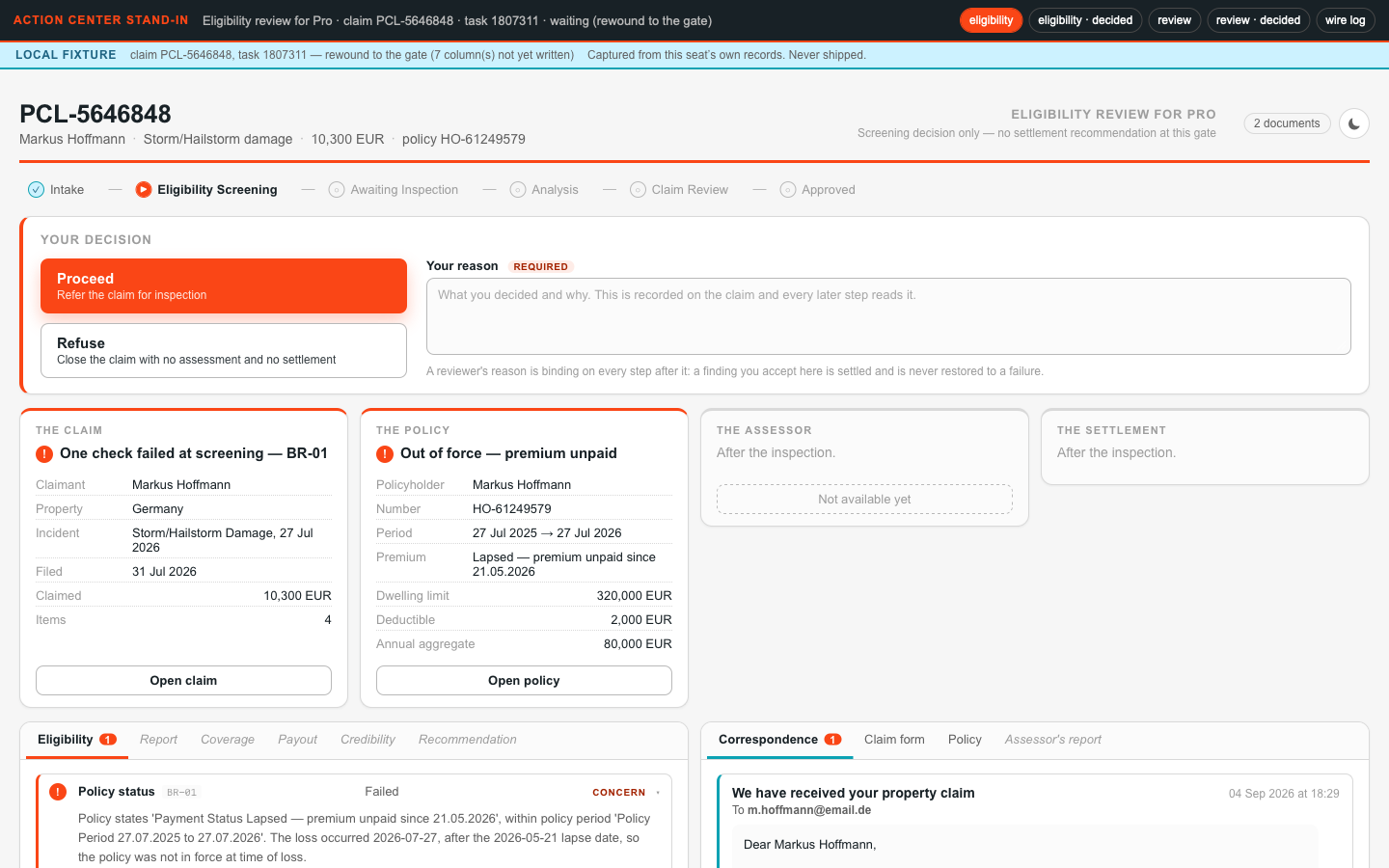

http://127.0.0.1:<port>/?gate=eligibility	All five checks visible with results and reasons, passes included; the claim recognizable

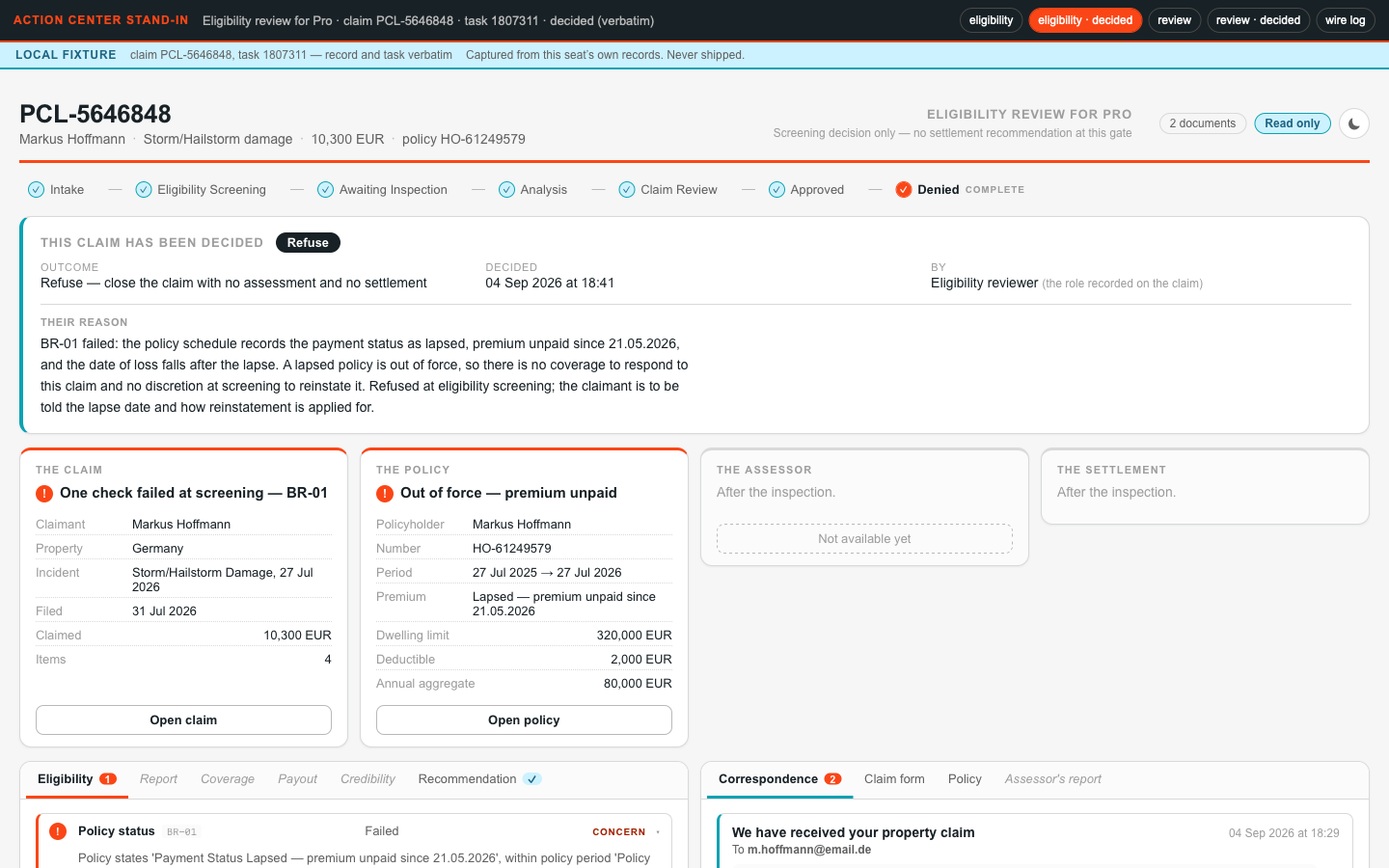

…?gate=eligibility&state=decided	A decided task still identifies its claim and shows the decision that survived

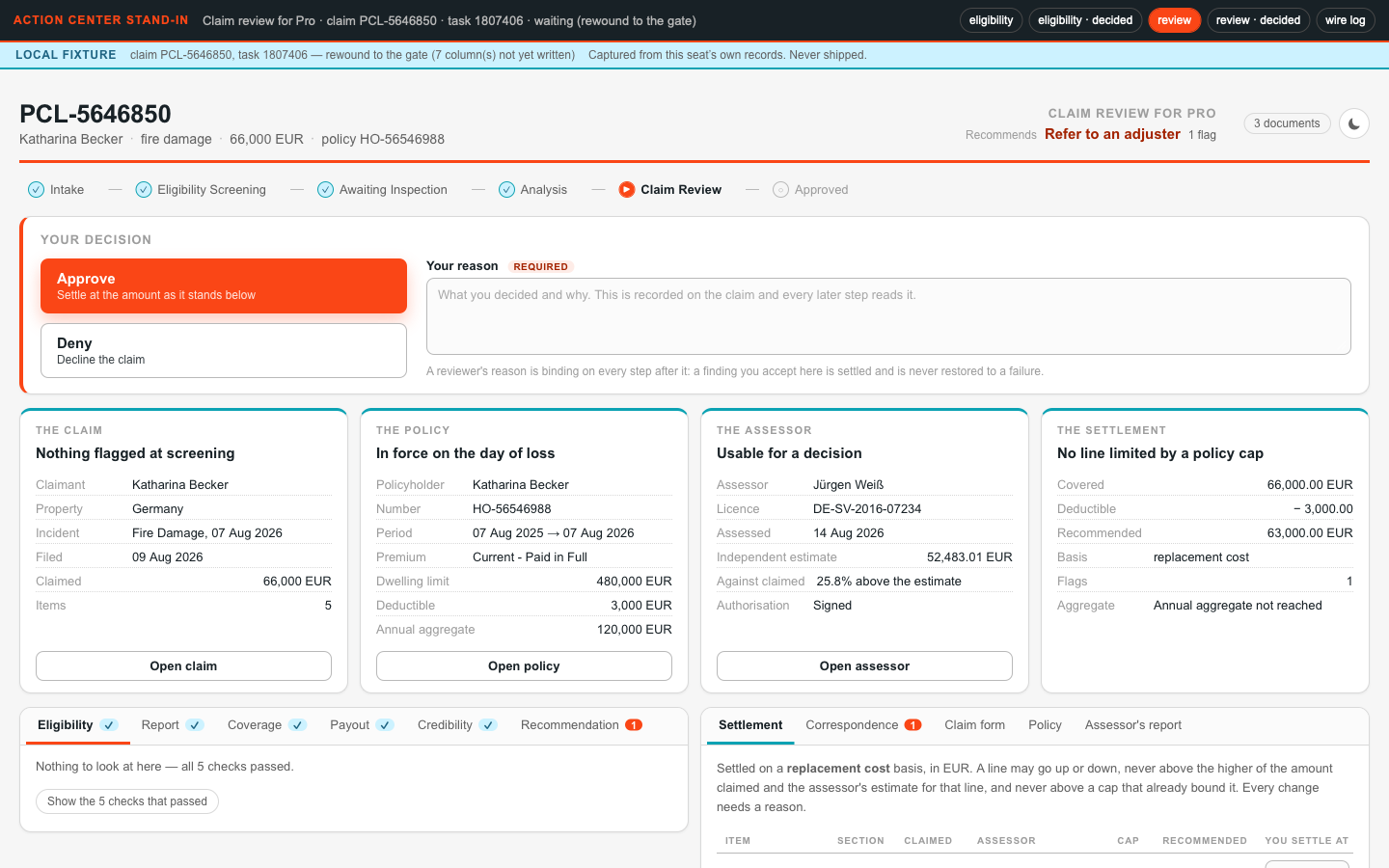

…?gate=review	Every finding side by side, the recommendation with its reasons, the settlement line by line, the documents

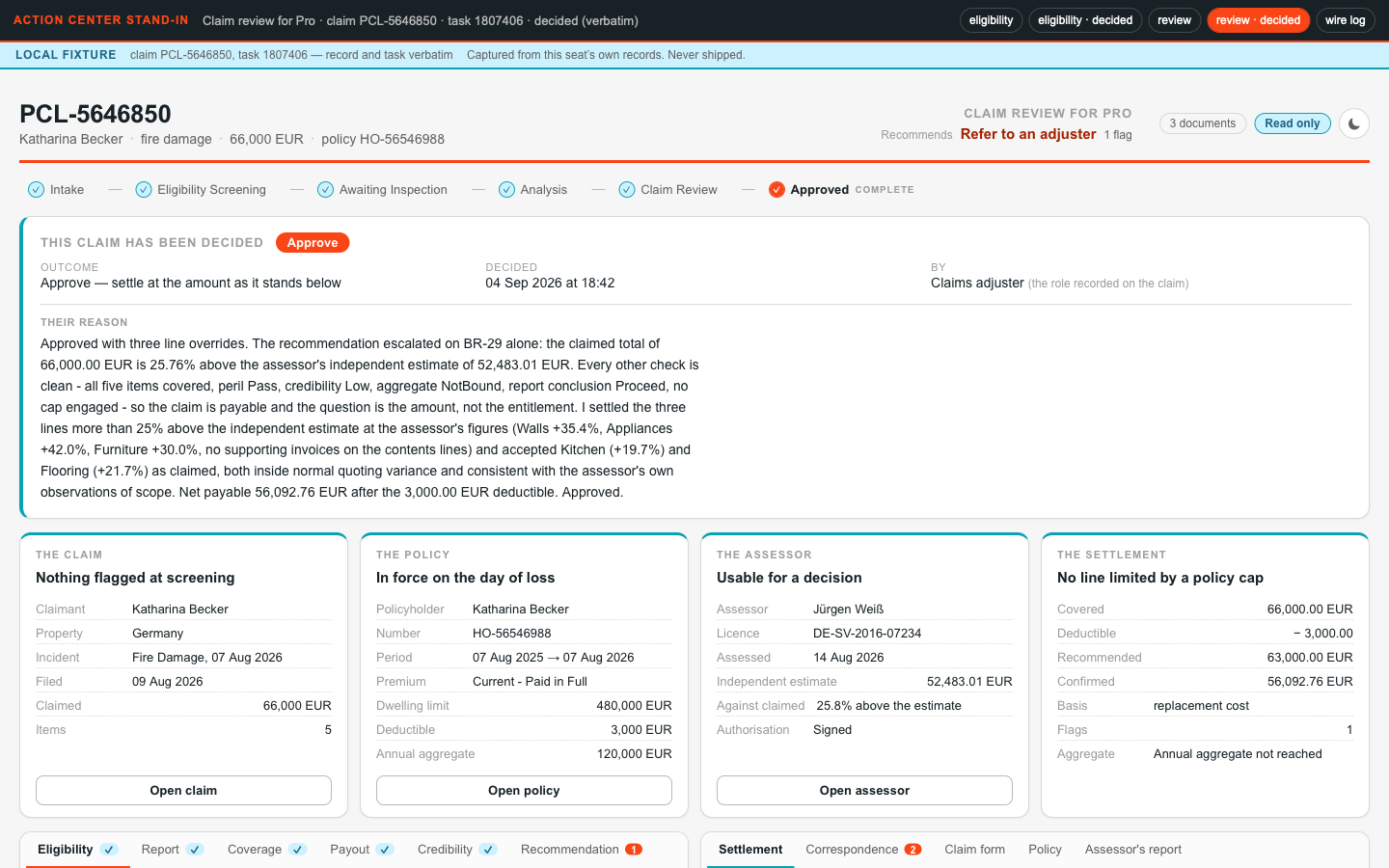

…?gate=review&state=decided	The confirmed figures carrying a real settlement override, not just the recommended numbers

Hand what you find back to the agent, let it fix, refresh, and approve. Then it publishes once. Your iteration loop has layers:

• A label or layout change needs only a browser reload
• An analysis change needs a case instance restart
• A data-structure or code change needs new fixtures and a rebuild or redeploy

Iterate on the cheapest layer and never let the cheap loop be the last thing you ran.

Here is that review from a real run: the four states, served on the local Action Center stand-in. The banner marks a local fixture, captured from the seat's own records and never shipped:

eligibility · openeligibility · decidedreview · openreview · decided

What the agent will review

• A decision carries a reason, always. The contract makes reviewerNotes required at both gates, because an inspected decision with a reason teaches the system which pattern failed; "a rubber-stamped click is theater" (The Work That Remains). If the screen makes the reason easy to skip, it built the wrong habit.
• One malformed field must not take down the screen. Generated data varies. Pin shapes upstream where you can, but handle unexpected data in each panel so a "blank page" becomes one panel saying "could not render the policy" with the decision still makeable.
• What survives task completion. Completing a task in Action Center drops its inputs; only inOuts and outputs survive. That is why the app reads the claim from the Data Fabric entity, not from its input arguments: it still renders after the task is completed.
• Text a person reads is plain. The screen shows agent reasons as the agent wrote them; the agents' house style (no field names, no JSON, no em dashes) is what makes that readable.

The gate

Your reviewer approving all four localhost states is the first gate. After the one publish, the write-back proof is the second: a fresh claim per gateway, its task completed from the CLI, the decision read back from the record. A task decided before a fix proves nothing, so always prove against a fresh one. Clicking through the deployed screens in Action Center is your own optional third check.

Proof

Both gates render in a browser on real data, and a decision, with its reason, lands on the claim record and moves the case on.

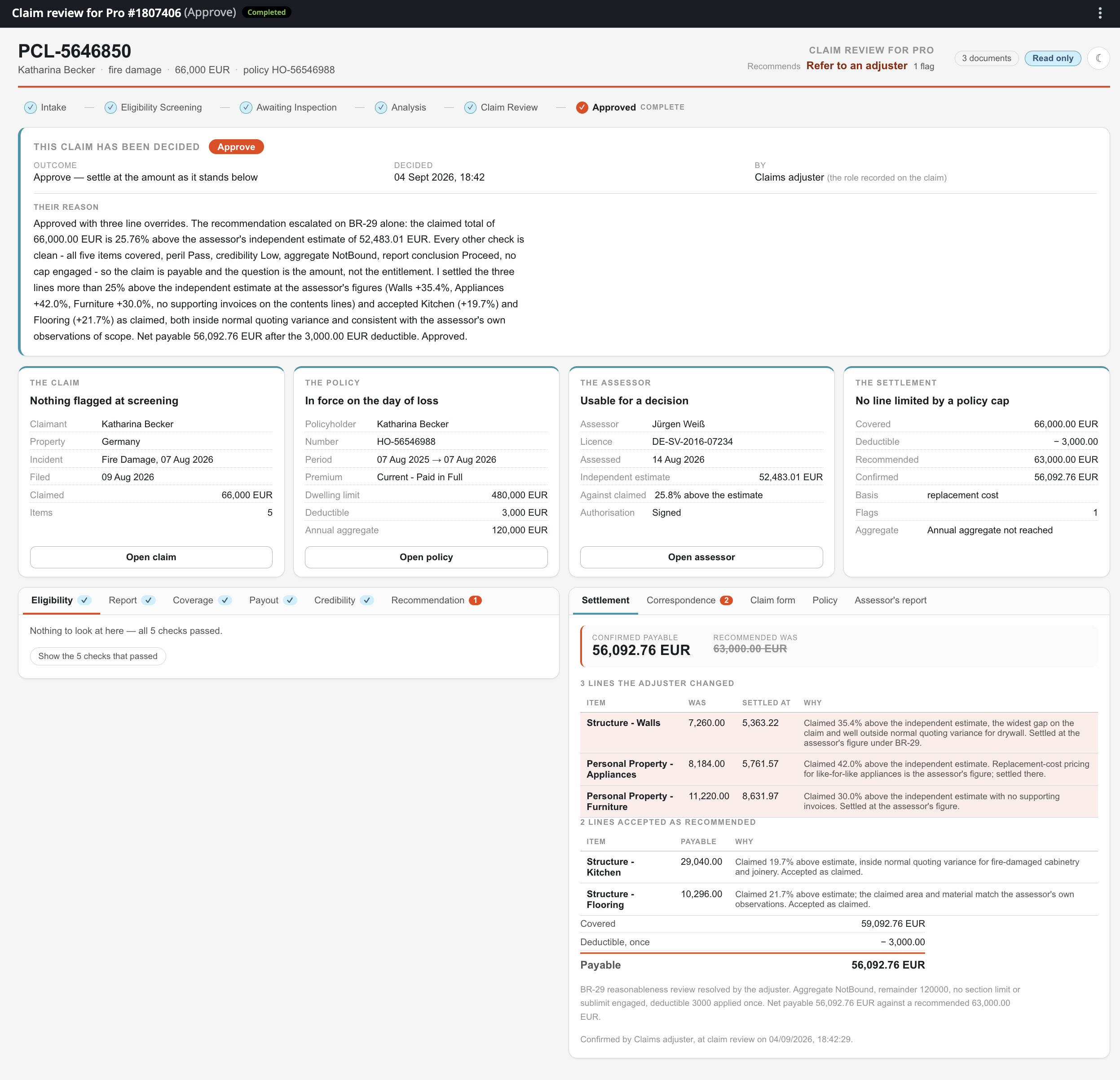

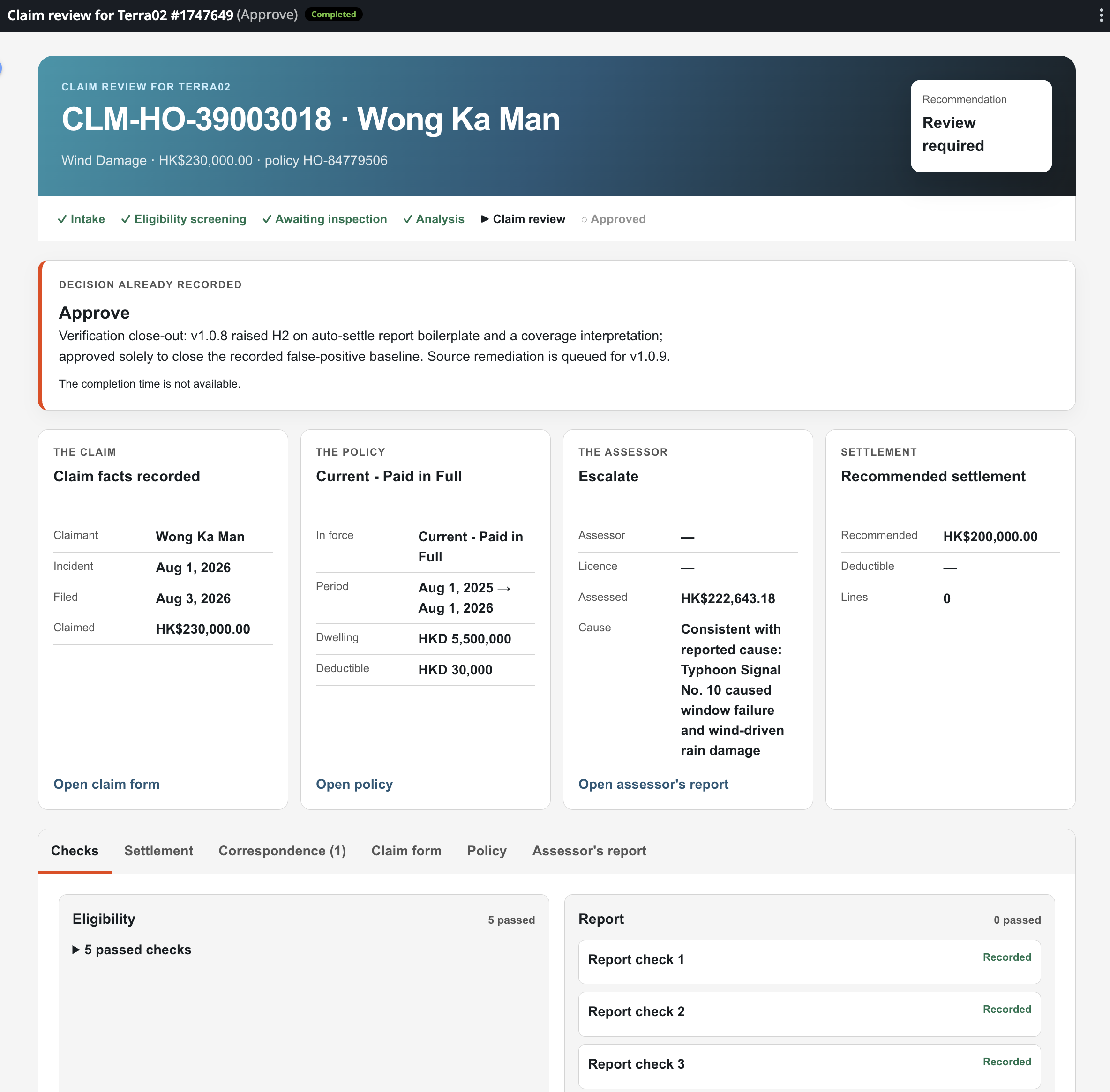

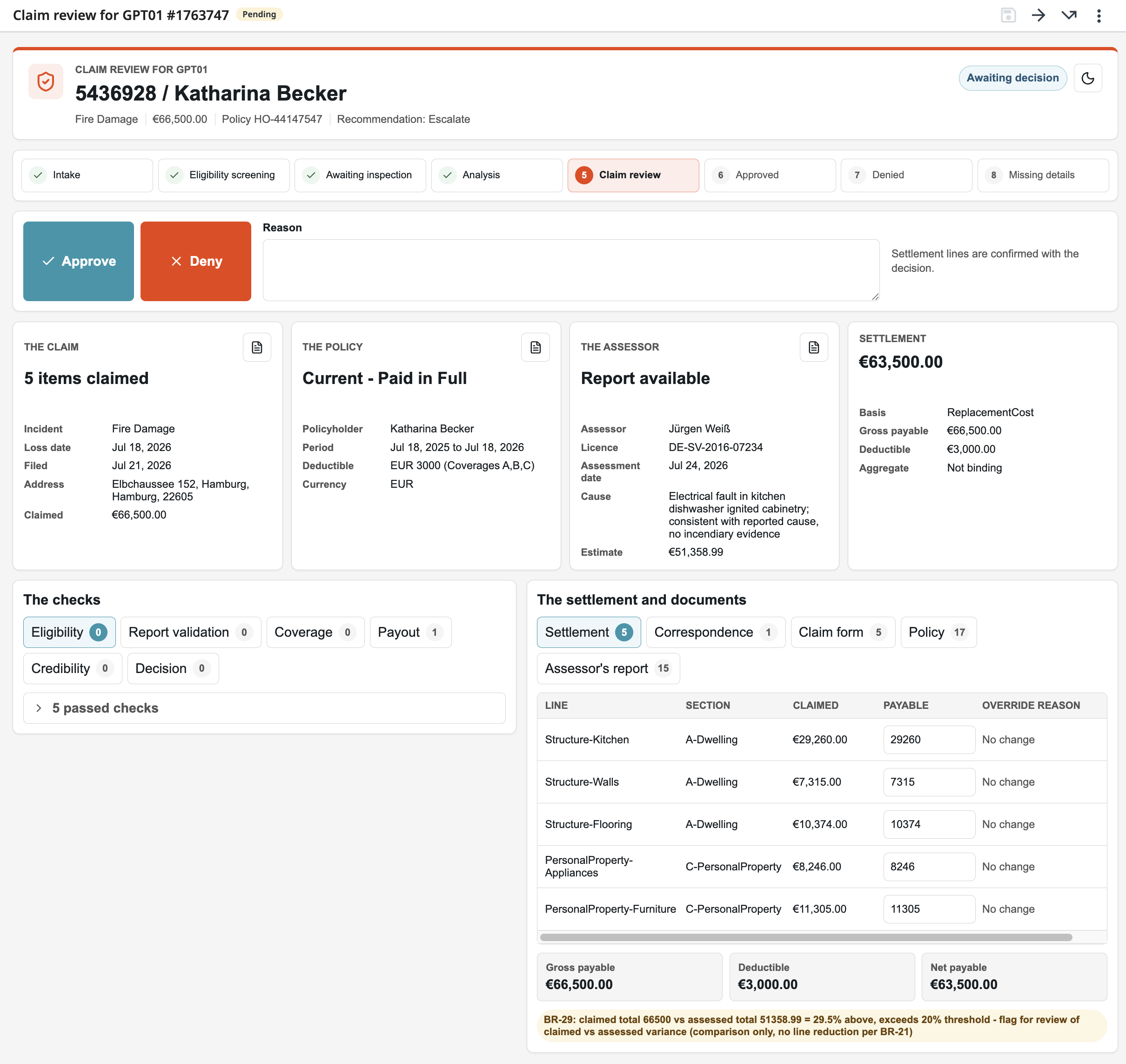

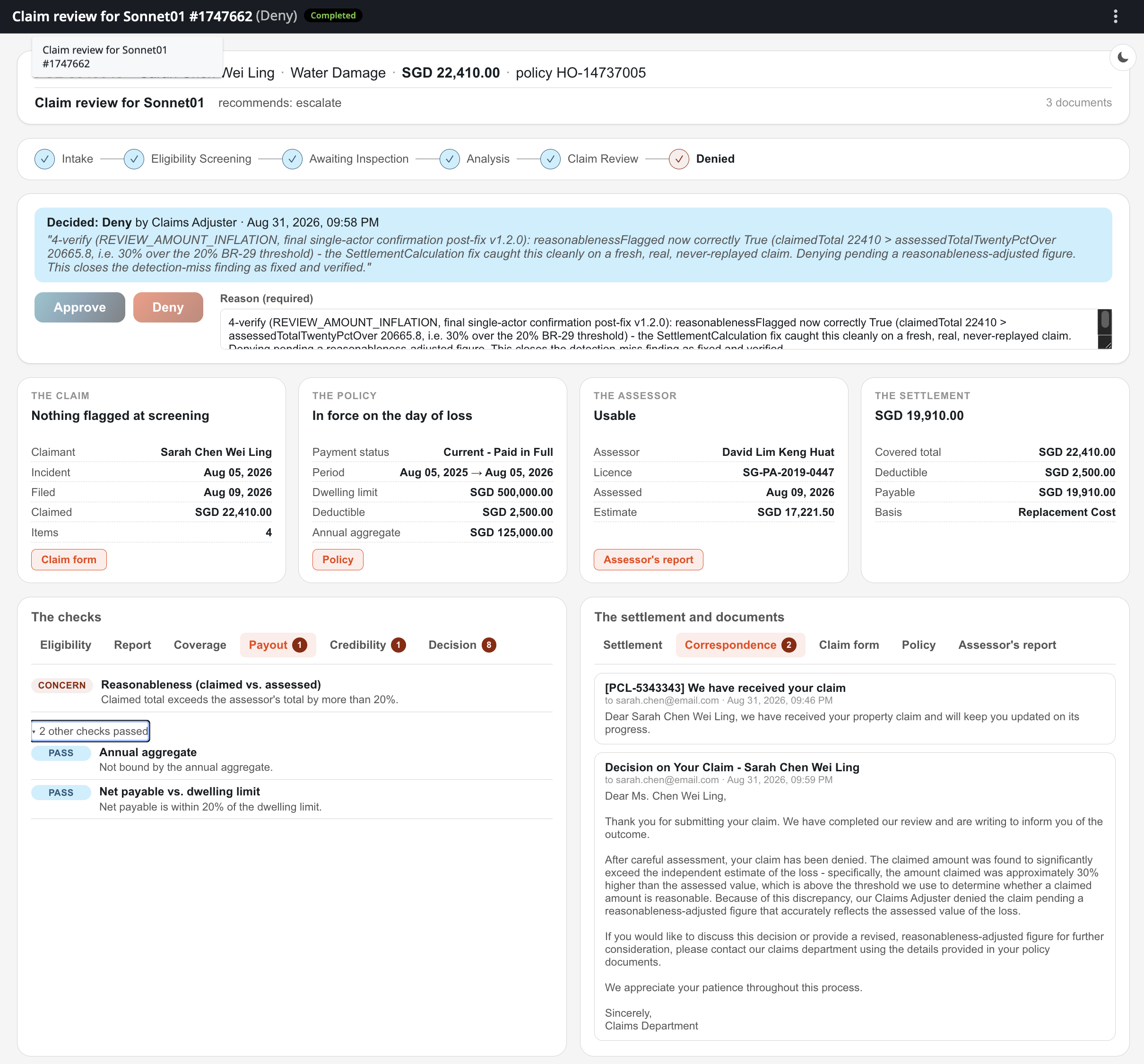

One layout, four different screens

The regions are fixed by layout.md and the look by brand.md, and still different models hand back visibly different screens from the same prompt, the same layout contract and the same data shapes. The first tab is the contract itself: the wireframe every build had to honour. Then come four builds of this very app:

The specSonnet 5Opus 5GPT-5.5GPT-5.6 Terra

From 3f-validation/layout.md, the H2 wireframe with its regions fixed and the styling free:

┌─ header ──────────────────────────────────────────────────────────────────────┐
│ PCL-4675074 · J. Okafor · water damage · SGD 48,200 · policy PL-99213          │
│ Claim review for <seat>        recommends: escalate — aggregate limit  [Docs 3]│
├─ where the claim is ──────────────────────────────────────────────────────────┤
│ ✓ Intake ─ ✓ Eligibility screening ─ ✓ Awaiting inspection ─ ✓ Analysis ─      │
│ ▶ Claim review ─ ○ Approved                                                    │
├─ decision ────────────────────────────────────────────────────────────────────┤
│ [ Approve ]  [ Deny ]        reason (required): ▏                              │
├─ at a glance ─────────────────────────────────────────────────────────────────┤
│ ┌ THE CLAIM ───────────┐ ┌ THE POLICY ──────────┐ ┌ THE ASSESSOR ─┐ ┌ SETTLE… ┐│
│ │ Nothing flagged      │ │ In force on the day  │ │ Usable — mould│ │ 9,807   ││
│ │ at screening         │ │ of loss              │ │ work unpriced │ │ recomm. ││
│ │ Claimant   J. Okafor │ │ Type      HO-3       │ │ Assessor  I.D.│ │ Covered ││
│ │ Incident   03/07/26  │ │ Period    03/07/25 → │ │ Licence   RO-…│ │  12,307 ││
│ │ Filed      08/07/26  │ │ Premium   Paid full  │ │ Assessed  06/07│ │ Deduct. ││
│ │ Claimed    48,200    │ │ Dwelling  500,000    │ │ Estimate  48k │ │  2,500  ││
│ │ Items      4         │ │ Deductible 2,500     │ │ Cause     pipe│ │ Payable ││
│ │ [ claim form ]       │ │ [ policy ]           │ │ [ report ]    │ │  9,807  ││
│ └──────────────────────┘ └──────────────────────┘ └───────────────┘ └─────────┘│
├─ the checks ───────────────────────────┬─ the settlement and documents ────────┤
│ Eligibility · Report(1) · Coverage ·   │ Settlement · Correspondence(2) ·      │
│ Payout(2) · Credibility · Decision(3)  │ Claim form · Policy · Assessor's rep. │
│  ▾ Aggregate limit binds — SGD 2,493 of prior claims this year    escalate    │
│  ▸ 12 other checks passed                                                      │
└───────────────────────────────────────────────────────────────────────────────┘
                              ▲ fold — a 1440×900 window ends about here

The layout contract fixes the regions and leaves the styling open, so each model styles the screens its own way. The localhost pause is where you review that styling before it ships.

---

Could this block have run in parallel with the previous one?

In this course we go step by step, because we're here to learn, not to race. In real life, independent builds can run in parallel.

The block that tests the case plan and this one, which builds the Coded App, barely overlap:

• The run block redeploys the solution, while this block redeploys the app alone
• The contract for both was pinned back at registration
• The run block completes its tasks from the command line and never waits for an Action App.

However, the app screens are built against payloads real runs produced, and the first fully populated record exists as soon as the clean claim has settled: fork there.
