Build the Process App (Block 6)¶

PDD.md §11 asks for the view the claims team lead has never had: every claim, where it is, how long it has been there, and what is waiting on a human (a work queue, an SLA and ageing view, and a per-claim drill-down). Today that view is a shared spreadsheet overwritten daily (§4.4, PP5); nobody can say how many claims are near their deadline. The PDD calls the replacement a requirement, not a nicety. This block builds it: a standalone Coded Web App with three screens: a portfolio dashboard, a searchable claims list, and one claim in full.

It comes after the hand-over for a reason. This app reads what every other block produced (the claim record, the case's own status words, the gate tasks in Action Center and the claim screen you built at 3f), so nothing it needs exists until the solution runs, and the solution it reads is the pinned one. And it ships beside the solution with its own publish and deploy, exactly as the Coded Action App does: an app provisioned inside the solution deploys as a shell and blocks every later redeploy once it moves on. A change to a chart must never cost a redeploy of the case.

PDD §11: the five views, verbatim

Open §11 in the full document ↗

#	Report / view	Frequency	Content	Audience	Where it is viewed
RP1	Claims in flight	Real-time	Every open claim: reference, claimant, stage, how long it has been in that stage, how close it is to the claim deadline, the amount claimed, and the recommended outcome where one exists	Claims team lead, Claims Operations Manager	A dashboard
RP2	Awaiting a human	Real-time	Claims sitting at H1 or H2, and for how long	Claims team lead	A dashboard
RP3	Closed today	Daily	Claims settled and refused, with amounts and outcomes	Claims Operations Manager	A dashboard
RP4	SLA breaches	Real-time	Claims at risk or breached, at claim and stage level	Claims team lead	A dashboard
RP5	Straight-through rate	Monthly	SC1, SC2 and SC5 against target	Head of Household Claims	A dashboard

In-flight visibility needed: a work queue, an SLA and ageing view, and a per-claim drill-down.

Decided for us¶

The three screens and the data inventory: 6-process-app/layout.md fixes a dashboard, a claims list and one claim. It also fixes what each screen may draw on: which columns of the record serve the portfolio, and what the case adds. The two mocks in 6-process-app/mocks/ fix the intent, not a pixel.
The record is the single source of the claim. The case exposes no task payloads, so the record's header columns are the only thing a portfolio can count, filter and sort, and its payload columns are the claim screen. The case adds only what the record cannot know: each stage's status and SLA. Its pre-aggregated instance counts need scopes the shared registration does not carry, so those are computed from the record.
The currency rule (PDD.md A2). Six countries, six currencies, no conversion anywhere in the process. Count claims freely; sum amounts per currency or not at all. A portfolio total in one currency is a number nobody can act on.
The vocabulary is your own case's. Status words, stage names and SLAs are read from the record and the case, never typed into the app. A list typed in drifts the first time either changes.
A decision goes through the task, never the record. From the claim page a handler completes the same Action Center task the case raised, with contracts/review-task.md's payload, and the case writes the record, the same path as a decision made in Action Center. That keeps one writer, one shape and one audit trail, which is why the shared registration carries a task scope and no record-write scope.
Re-use the Action App's claim view. The claim screen is the one you built at 3f, imported from its source (one claim view, two deployables), with the decision controls shown only while a gate task is open for that claim.
The visuals are yours: which figures earn a card, which distributions earn a chart, the layout, the refresh. Taste is still a requirement you have to state.

The prompt¶

Prompt — block 6 · Process App

# Build — the Process App

`PDD.md` §11 asks for the view the claims team lead has never had: every claim, where it is, how long it has been there, and what is waiting on a human. Build it as a standalone **Coded Web App** at `Build/property-claims-<seat>/` — beside the solution, published and deployed on its own into your seat folder, signed in through the shared registration (`CONFIG.md`, *The Coded Action App signs in through a shared registration* — the same client, the scopes it carries and no others).

Use the **`uipath-coded-apps`** skill — the web-app path, not the action-app path and not its dashboard generator. Read `6-process-app/layout.md` first: the three screens, and what the claim record and the case already carry. Decide the visuals yourself from that data.

**Re-use the Action App, do not rebuild it.** The claim screen is the one you built at `3f` — import it from `Build/claim-review-<seat>/src` (an alias into its source, so there is one claim view and two deployables) and take its stylesheet with it. Show its decision controls only while a gate task is open for that claim, and make completing them complete that Action Center task with `contracts/review-task.md`'s payload — outcome and outputs, the three identifiers replayed. The case then writes the record; the app never writes the claim record itself.

Never sum amounts across currencies (`PDD.md` A2). Read who decided from the gate conditions, not from the decision columns.

Before you build, write `6-process-app/design.md`: each screen, what it shows, from which column or call, and the map from your record's status words to the labels a handler reads. Ten lines a screen.

Build against your own records. Serve it locally, sign in, and reconcile the dashboard's counts with `uip df records list` before the first publish — a signed-in browser is your reviewer's; prove the arithmetic without one by running the app's own aggregation over the rows the CLI read. Then `npm run build` → `uip codedapp pack` → `uip codedapp publish` (a Web app, no `-t Action`) → `uip codedapp deploy --folder-key <your seat folder> --client-id <the shared registration>`.

**Done when:**
- the deployed app opens signed in from your seat folder, and its dashboard counts equal the record counts by status from the command line
- one search finds a claim by id, by policy number and by claimant name; the claim page renders a settled claim, a refused claim and one still in flight
- a claim with a pending task shows it; completing it from the app shows `Completed` in `uip tasks get <id>`, and the case writes the decision on the record and moves the claim on

Steps:

Your checks, on the deployed URL¶

The agent proves the arithmetic without a browser: it runs the app's own aggregation over the rows the CLI read and diffs the two against an independent count. That reconciliation is a gate, and every gate is a floor. What the agent cannot do is sign in; a signed-in browser is a human's. So four checks are yours, and they close the block:

Check	What you should see
Open the URL `deploy` printed, from your seat folder, signed in	The dashboard renders on your own records. Its tiles equal the reconciliation the agent wrote: run its check and compare, or count by status with `uip df records list`

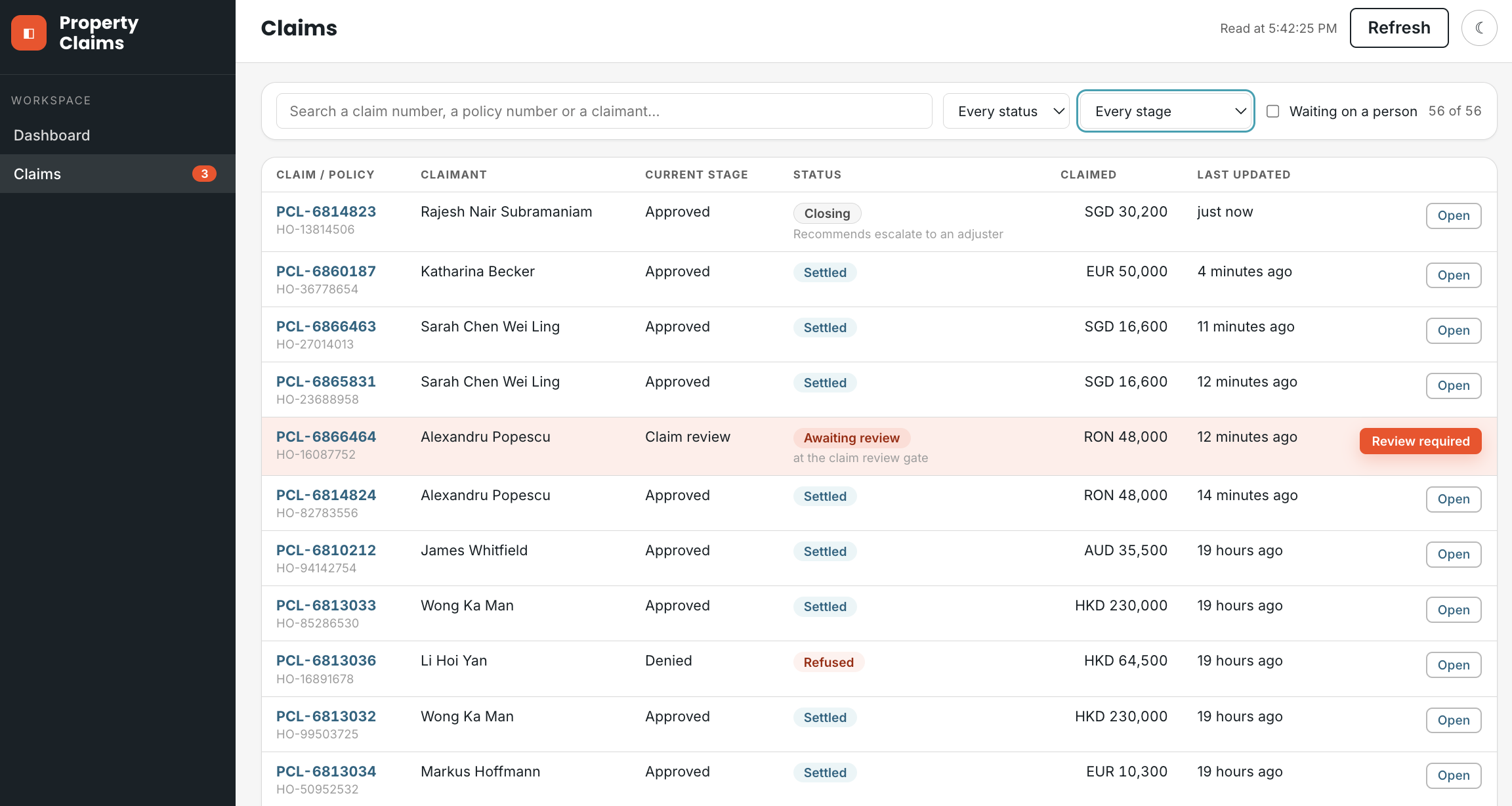

Search one claim three ways (by claim id, by policy number, by claimant name), then once by nonsense	Each search finds it and says how many of how many; the nonsense search names what it looked for instead of a blank table
Open a settled claim, a refused claim and one still in flight	The Action App's screen, unchanged; stages never entered marked as not reached; decision controls present only on the in-flight claim whose gate is open, with a link to the same task in Action Center beside them
Complete a gate task from the claim page: outcome, reason, submit	`uip tasks get <id>` says `Completed`; the record carries the decision and the claim has moved on; awaiting a human drops by one on refresh

The agent left a fresh claim waiting at each gate for exactly this. Decide them from the app, not from the CLI: a task completed from the command line proves nothing about the screen.

DashboardClaimsOne claim

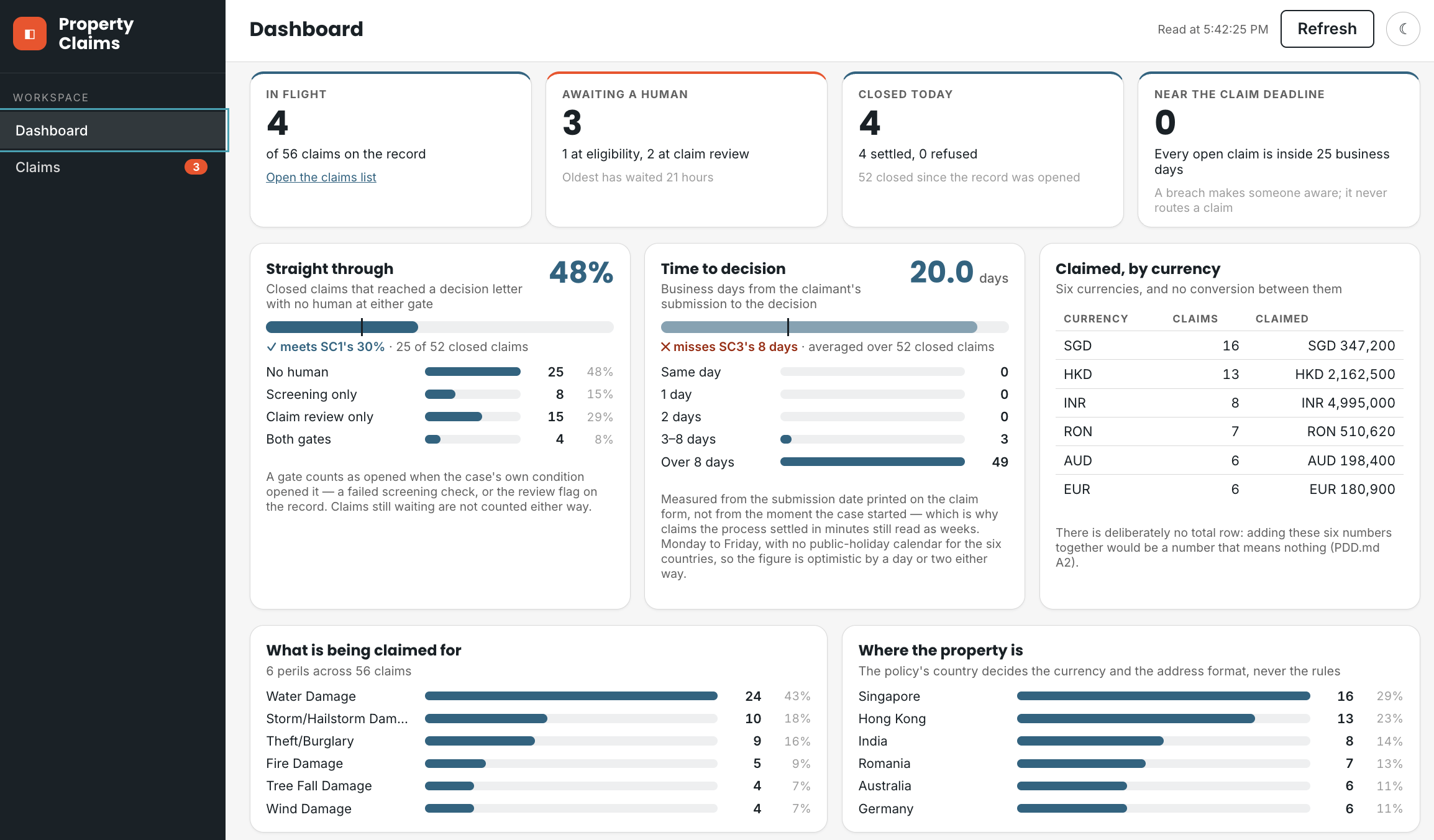

The portfolio dashboard: four tiles — in flight, awaiting a human, closed today, near the claim deadline — a straight-through meter and a time-to-decision meter with their distributions, amounts claimed per currency with no total row, and ranked bars for the six perils and the six countries

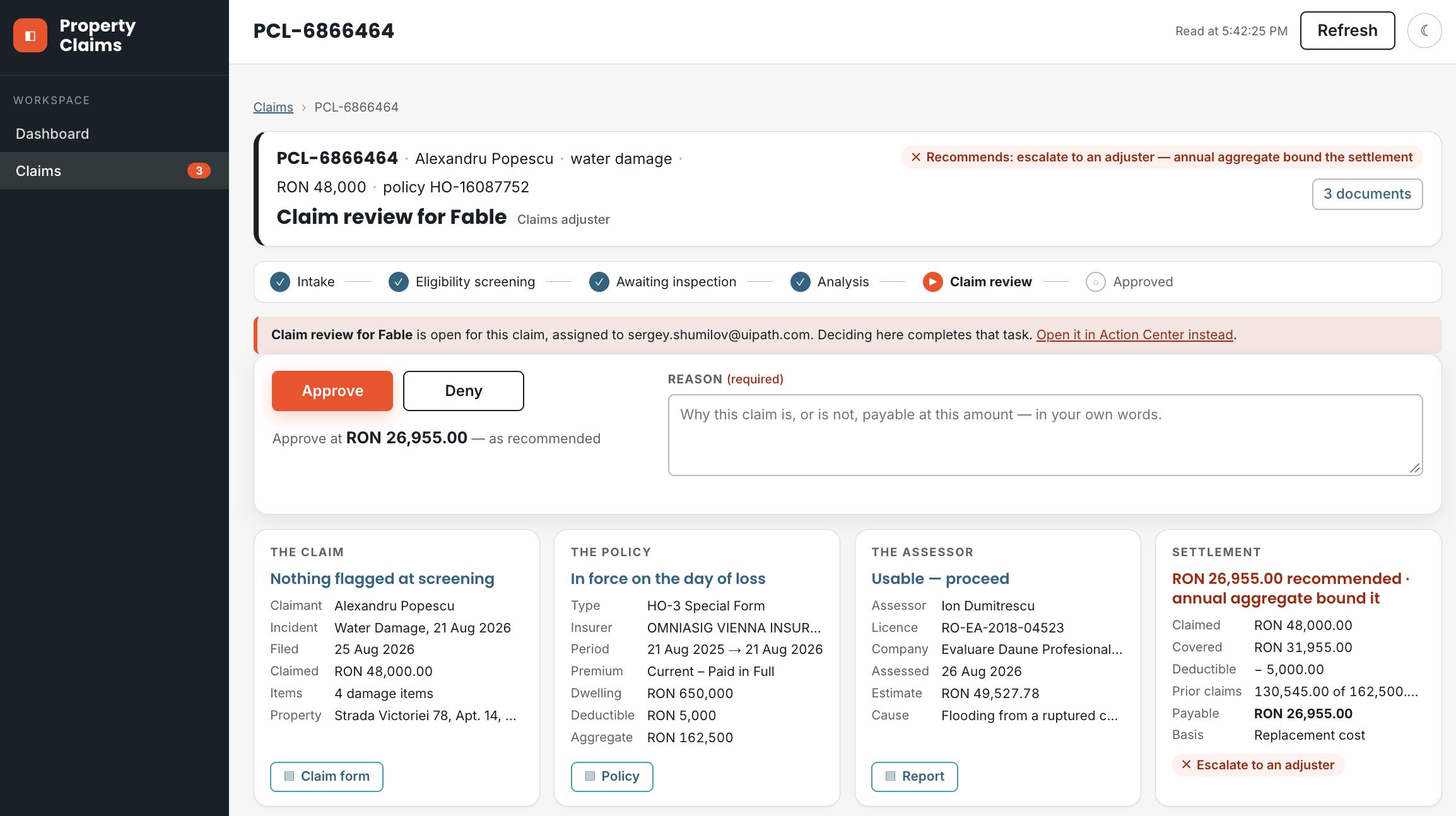

One claim in full on the Action App's own screen — header, stage strip, the four cards — with the claim review gate open, so the two outcomes and the required reason are live and the same task is linked in Action Center

Read the screens the way a team lead would:

Every figure says where it came from or which rule it used. The time-to-decision card says which calendar it counted; the currency card says why there is no total row. A figure with no source is a guess dressed as a number.
Who decided comes from the gate conditions, not the decision words. The case's convergence write fills the decision columns on every claim, human or not. A gate counts as opened when the case's own condition opened it (a failed screening check, the review flag on the record), and the gates opened must equal the tasks ever raised. Ask your agent for that cross-check.
Where the case would have added something, the screen says so. A scope not granted means the figure is computed from the record and the card says what is missing, never a blank panel and never sample data standing in for a failed call.

What you learn about driving the agent¶

Three sources, and what each can say. The record: business fields and the analysis payloads, everything a portfolio can count, filter and drill into. The case: each stage's status and SLA, which the record cannot know (its pre-aggregated instance counts need scopes the shared registration does not carry). The tasks: who is waiting, at which gate, since when. Every figure on the screen has exactly one of these behind it; make the agent name it.
One scope, one failure. A scope asked for and not granted fails the whole token, silently, on the first call: sign-in bounces straight back, or every service fails at once. Read the registration in CONFIG.md before the code; the app asks for exactly that list. Adding a service means the scope has to exist on the registration first, and that is the operator's job, not the agent's.
Every list call is one page. There is no option to ask for all, and a dashboard that reads one page lies confidently, because a partial count still looks like a count. The agent loops the cursor until there is no next page, then pages the table itself with showing X–Y of Z.
Absent is not null. A column never written is missing from the row, not null, and an in-flight claim is mostly absent columns. And the decision column has two shapes over a claim's life: the recommendation while the review gate is open, recommendation plus outcome after it closes. Read every column defensively, and key on the record's own flags, never on which keys happen to be present.
Completing a task replaces its payload. Every writer replaces the whole payload, so the outcome, the outputs and the three identifiers go back together, because a completed task must still know its claim. The same fact shaped the Action App; here it decides what the app sends.

6-process-app/cookbook.md carries the traps behind each of these, in the order an agent meets them.
