Part 1 : Practical exercise

⏱ ~20 min📖 Hands-On🎯 Intermediate

🎯 What you will do

  • Reuse a Studio workflow to configure a Generative Classifier and Extractor
  • Set up Taxonomy with document types and extraction fields
  • Configure and run the end-to-end generative extraction workflow
  • Validate extracted results using Validation Station
📎 Exercise files
Download the files needed for this practical exercise:
Download degree_certificates.zip Download Extraction Process_UiPathWorkflow.zip

Walkthrough Video

Watch the full practical walkthrough below. Follow along in your own UiPath environment to see the Generative Classifier and Extractor configured step by step.

📥 Prefer a written copy?
The video above covers every step below. If you'd rather follow along on paper (or reference it later without replaying the video), download the written step-by-step guide:

UiPath Generative Extractor Workflow — Step-by-Step

1
Setup
Reuse the Earlier UiPath Studio Workflow
  1. Use the UiPath Studio Workflow from the "Structured documents" module.
  2. Open the Main workflow.
2
Data
Configure Document Inputs
  1. Place sample documents in the Data → Input folder.
3
Configuration
Configure the Taxonomy
  1. Open Taxonomy Manager.
  2. Create the required document types:
    • Group: Certificates
    • Category: Forms
    • Document Type: Degree_Cert
  3. Create 3 extraction fields:
    • UniversityName (type: Text)
    • AwardeeName (type: Text)
    • DateofDegree (type: Date)

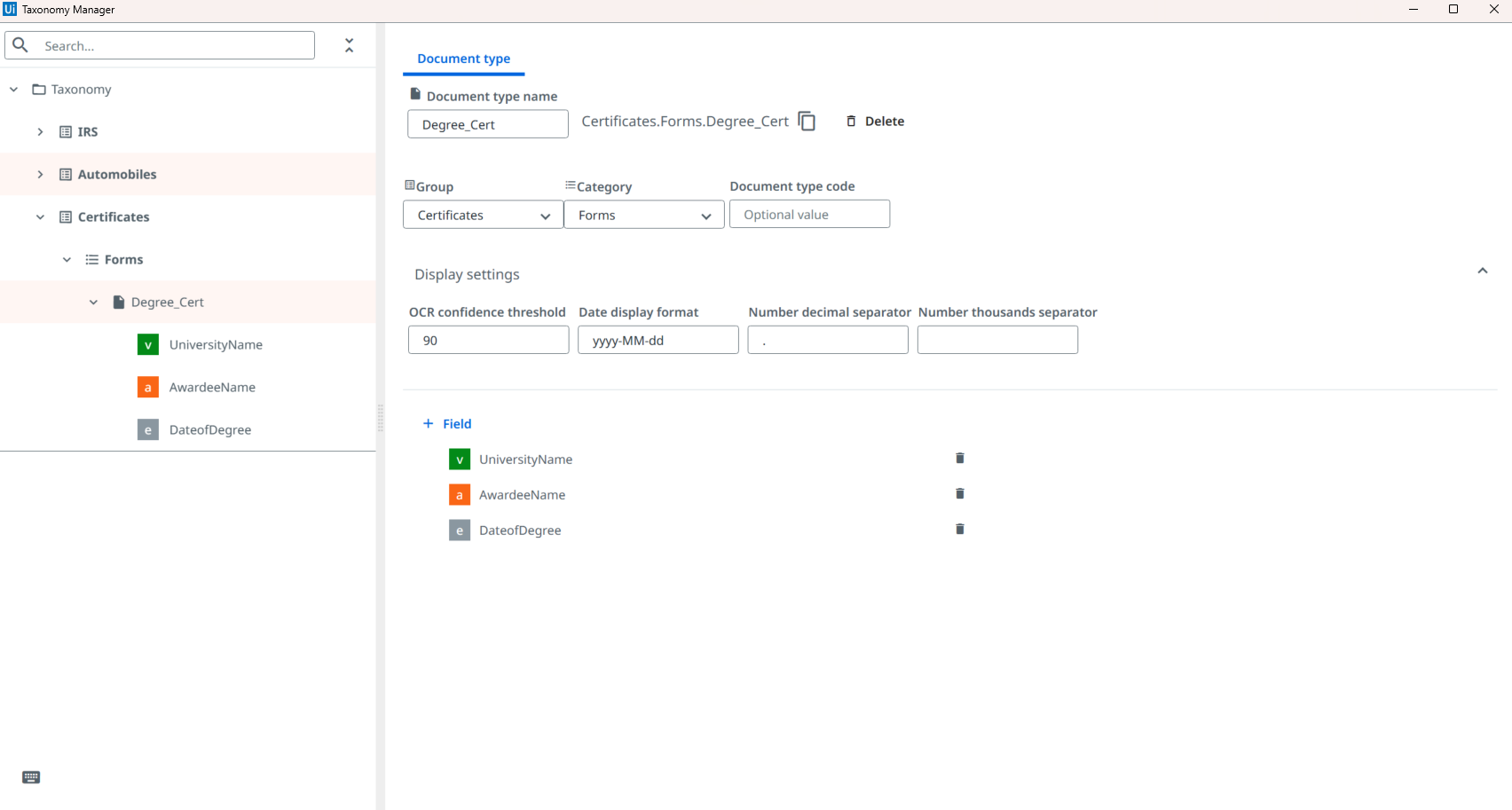

Taxonomy Manager with document types and fields
  1. Save the taxonomy.
4
Classifier
Add a Generative Classifier
  1. Under the Classify Document Scope in the workflow, add a Generative Classifier.
  2. Click Manage Field Details on the Generative Classifier.
  3. For the Degree_Cert document type, provide a natural-language description and Save.

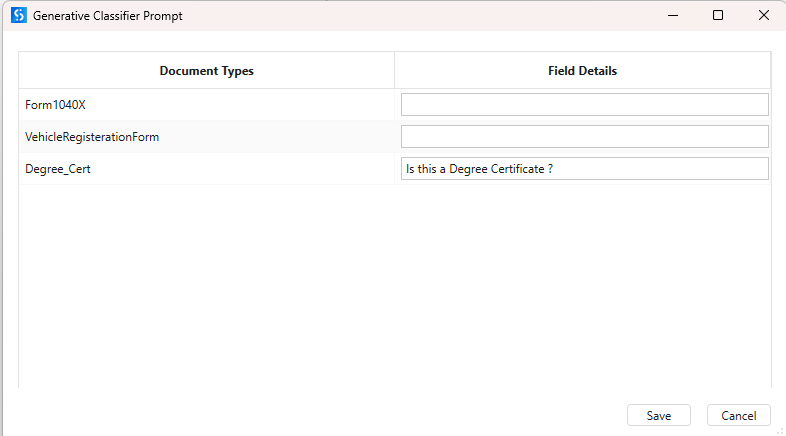

Generative Classifier — Manage Field Details
  1. Example: Degree_Cert → "Is this a Degree Certificate?"
  2. Click Configure Classifier and save the below configuration.

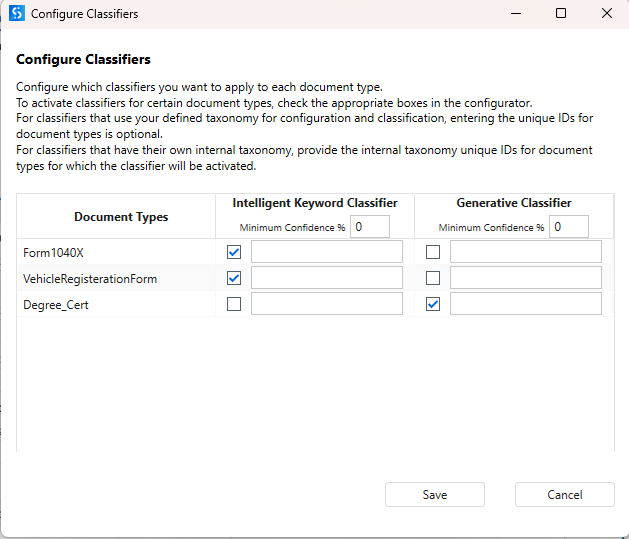

Generative Classifier configuration settings
5
Extractor
Configure a Generative Extractor
  1. Under the Data Extraction Scope in the workflow, add a Generative Extractor.
  2. Click Manage Field Details on the Generative Extractor.

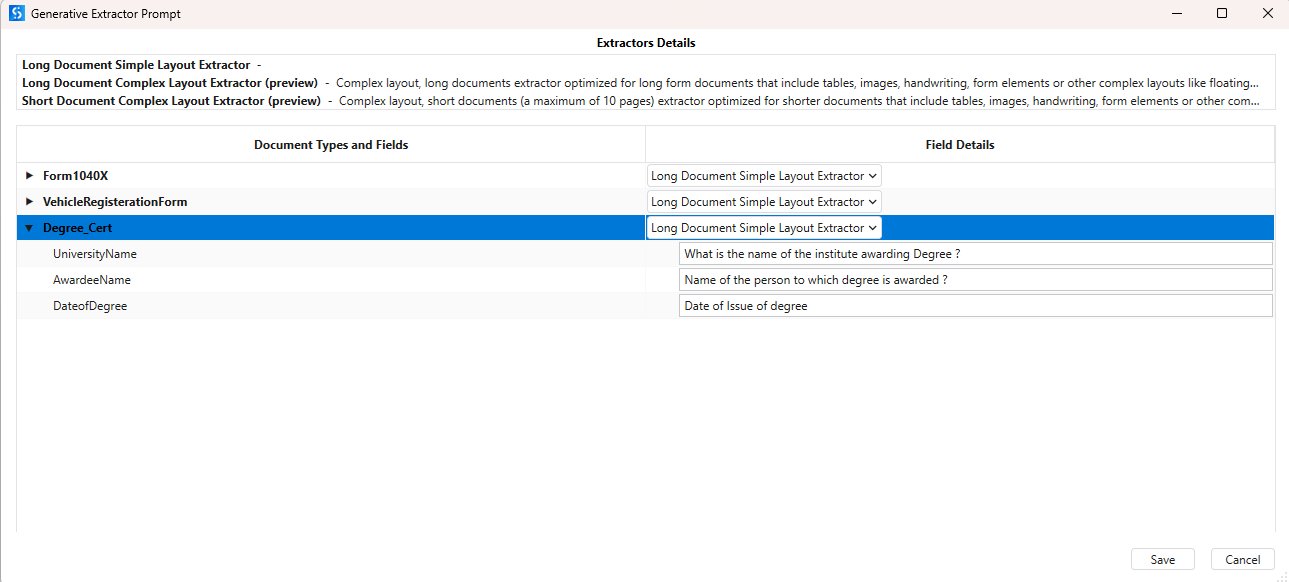

Generative Extractor — Manage Field Details
  1. Set prompts for each field:
    • UniversityName: What is the name of the institute awarding the Degree?
    • AwardeeName: Name of the person to which degree is awarded?
    • DateofDegree: Date of Issue of degree
  2. Save.
  3. Click Configure Extractor. Do the below configuration and Save.

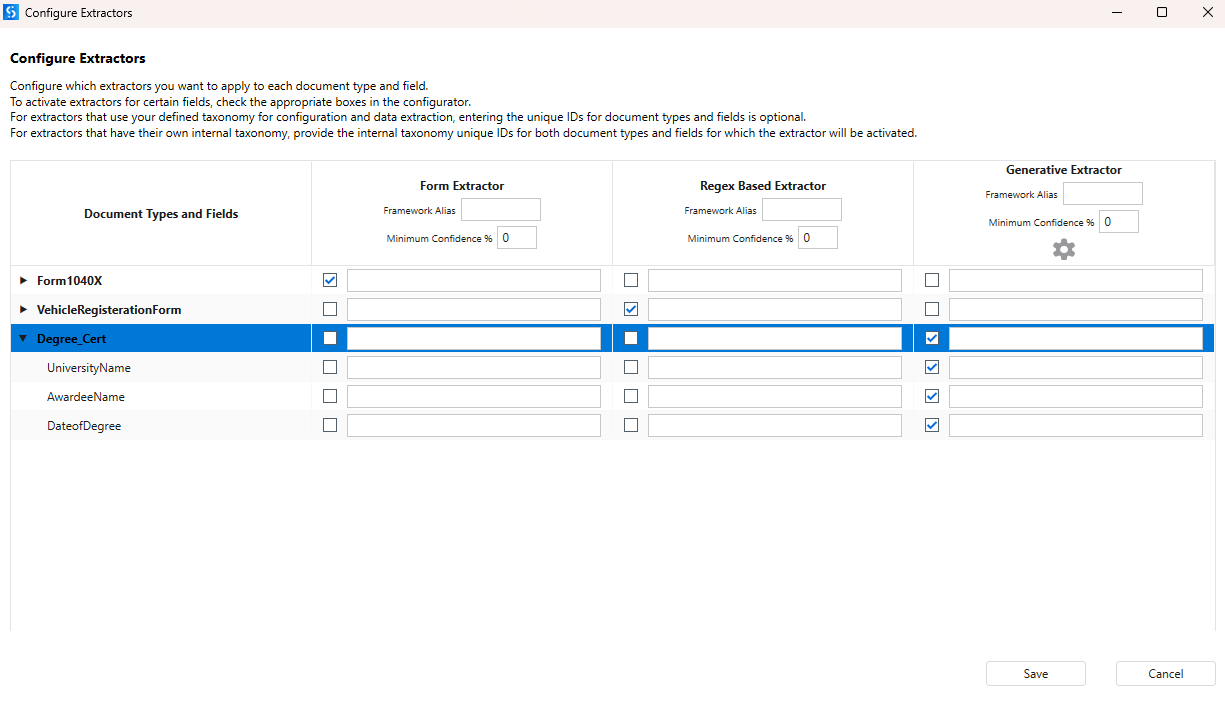

Configure Extractor settings
6
Execution
Execute Extraction
  1. Run the workflow.
  2. Observe the output logs and verify:
    • Taxonomy loaded successfully
    • Classification completed
    • Extraction completed
    • Extracted fields are returned
7
Validation
Validate Extraction Results
  1. In the Present Validation Station after the extraction step.
  2. Review extracted values.
  3. Correct any incorrectly extracted fields.
  4. Submit validation results.
